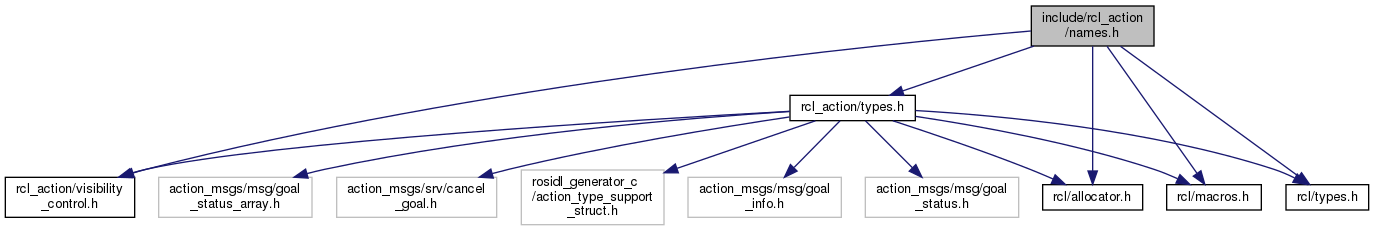

Go to the source code of this file.
|
RCL_ACTION_PUBLIC rcl_ret_t | rcl_action_get_goal_service_name (const char *action_name, rcl_allocator_t allocator, char **goal_service_name) |
| Get the goal service name of an action. More...
|
|
RCL_ACTION_PUBLIC rcl_ret_t | rcl_action_get_cancel_service_name (const char *action_name, rcl_allocator_t allocator, char **cancel_service_name) |
| Get the cancel service name of an action. More...
|
|
RCL_ACTION_PUBLIC rcl_ret_t | rcl_action_get_result_service_name (const char *action_name, rcl_allocator_t allocator, char **result_service_name) |
| Get the result service name of an action. More...
|
|
RCL_ACTION_PUBLIC rcl_ret_t | rcl_action_get_feedback_topic_name (const char *action_name, rcl_allocator_t allocator, char **feedback_topic_name) |
| Get the feedback topic name of an action. More...
|
|
RCL_ACTION_PUBLIC rcl_ret_t | rcl_action_get_status_topic_name (const char *action_name, rcl_allocator_t allocator, char **status_topic_name) |
| Get the status topic name of an action. More...
|
|
◆ rcl_action_get_goal_service_name()
Get the goal service name of an action.
This function returns the goal service name for a given action name that must be used by action clients and action servers to successfully communicate with each other.
Attribute | Adherence |
Allocates Memory | Yes |
Thread-Safe | No |
Uses Atomics | No |
Lock-Free | Yes |
- Parameters
-
[in] | action_name | The name of the action whose goal service name is being returned. |
[in] | allocator | A valid allocator to be used. |
[out] | goal_service_name | Either an allocated string with the action goal service name, or NULL if the function failed to allocate memory for it. Must refer to a NULL pointer upon call. |
- Returns
RCL_RET_OK
if the action goal service name was returned, or
-
RCL_RET_ACTION_NAME_INVALID
if the action name is not valid (i.e. empty), or
-
RCL_RET_INVALID_ARGUMENT
if the action name is NULL
, or
-
RCL_RET_INVALID_ARGUMENT
if the allocator is invalid, or
-
RCL_RET_INVALID_ARGUMENT
if the goal service name pointer is NULL
or points to a non-NULL
pointer, or
-
RCL_RET_BAD_ALLOC
if allocating memory failed.
◆ rcl_action_get_cancel_service_name()
Get the cancel service name of an action.
This function returns the cancel service name for a given action name that must be used by action clients and action servers to successfully communicate with each other.
Attribute | Adherence |
Allocates Memory | Yes |
Thread-Safe | No |
Uses Atomics | No |
Lock-Free | Yes |
- Parameters
-
[in] | action_name | The name of the action whose cancel service name is being returned. |
[in] | allocator | A valid allocator to be used. |
[out] | cancel_service_name | Either an allocated string with the action cancel service name, or NULL if the function failed to allocate memory for it. Must refer to a NULL pointer upon call. |
- Returns
RCL_RET_OK
if the action cancel service name was returned, or
-
RCL_RET_ACTION_NAME_INVALID
if the action name is not valid (i.e. empty), or
-
RCL_RET_INVALID_ARGUMENT
if the action name is NULL
, or
-
RCL_RET_INVALID_ARGUMENT
if the allocator is invalid, or
-
RCL_RET_INVALID_ARGUMENT
if the cancel service name is NULL
or points to a non-NULL
pointer, or
-
RCL_RET_BAD_ALLOC
if allocating memory failed.
◆ rcl_action_get_result_service_name()
Get the result service name of an action.
This function returns the result service name for a given action name that must be used by action clients and action servers to successfully communicate with each other.
Attribute | Adherence |
Allocates Memory | Yes |
Thread-Safe | No |
Uses Atomics | No |
Lock-Free | Yes |
- Parameters
-
[in] | action_name | The name of the action whose result service name is being returned. |
[in] | allocator | A valid allocator to be used. |
[out] | result_service_name | Either an allocated string with the action result service name, or NULL if the function failed to allocate memory for it. Must refer to a NULL pointer upon call. |
- Returns
RCL_RET_OK
if the action result service name was returned, or
-
RCL_RET_ACTION_NAME_INVALID
if the action name is not valid (i.e. empty), or
-
RCL_RET_INVALID_ARGUMENT
if the action name is NULL
, or
-
RCL_RET_INVALID_ARGUMENT
if the allocator is invalid, or
-
RCL_RET_INVALID_ARGUMENT
if the result service name pointer is NULL
or points to a non-NULL
pointer, or
-
RCL_RET_BAD_ALLOC
if allocating memory failed.
◆ rcl_action_get_feedback_topic_name()
Get the feedback topic name of an action.
This function returns the feedback topic name for a given action name that must be used by action clients and action servers to successfully communicate with each other.
Attribute | Adherence |
Allocates Memory | Yes |
Thread-Safe | No |
Uses Atomics | No |
Lock-Free | Yes |
- Parameters
-
[in] | action_name | The name of the action whose feedback topic name is being returned. |
[in] | allocator | A valid allocator to be used. |
[out] | feedback_topic_name | Either an allocated string with the action feedback topic name, or NULL if the function failed to allocate memory for it. Must refer to a NULL pointer upon call. |
- Returns
RCL_RET_OK
if the action feedback topic name was returned, or
-
RCL_RET_ACTION_NAME_INVALID
if the action name is not valid (i.e. empty), or
-
RCL_RET_INVALID_ARGUMENT
if the action name is NULL
, or
-
RCL_RET_INVALID_ARGUMENT
if the allocator is invalid, or
-
RCL_RET_INVALID_ARGUMENT
if the feedback topic name pointer is NULL
or points to a non-NULL
pointer, or
-
RCL_RET_BAD_ALLOC
if allocating memory failed.
◆ rcl_action_get_status_topic_name()
Get the status topic name of an action.
This function returns the status topic name for a given action name that must be used by action clients and action servers to successfully communicate with each other.
Attribute | Adherence |
Allocates Memory | Yes |
Thread-Safe | No |
Uses Atomics | No |
Lock-Free | Yes |
- Parameters
-
[in] | action_name | The name of the action whose status topic name is being returned. |
[in] | allocator | A valid allocator to be used. |
[out] | status_topic_name | Either an allocated string with the action status topic name, or NULL if the function failed to allocate memory for it. Must refer to a NULL pointer upon call. |
- Returns
RCL_RET_OK
if the action status topic name was returned, or
-
RCL_RET_ACTION_NAME_INVALID
if the action name is not valid (i.e. empty), or
-
RCL_RET_INVALID_ARGUMENT
if the action name is NULL
, or
-
RCL_RET_INVALID_ARGUMENT
if the allocator is invalid, or
-
RCL_RET_INVALID_ARGUMENT
if the status topic name pointer is NULL
or points to a non-NULL
pointer, or
-
RCL_RET_BAD_ALLOC
if allocating memory failed.
