rcl_logging_interface.h File Reference

#include "rcl_logging_interface/visibility_control.h"
#include "rcutils/allocator.h"

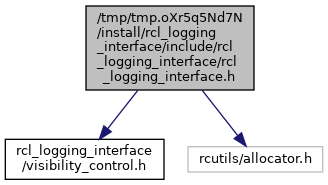

Include dependency graph for rcl_logging_interface.h:

Go to the source code of this file.

Enumerations
enum	rcl_logging_ret_t {   RCL_LOGGING_RET_OK = 0, RCL_LOGGING_RET_ERROR = 2, RCL_LOGGING_RET_INVALID_ARGUMENT = 11, RCL_LOGGING_RET_CONFIG_FILE_DOESNT_EXIST = 21,   RCL_LOGGING_RET_CONFIG_FILE_INVALID = 22 }

Functions
RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t	rcl_logging_external_initialize (const char *config_file, rcutils_allocator_t allocator)
	Initialize the external logging library. More...
RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t	rcl_logging_external_shutdown ()
	Free the resources allocated for the external logging system. More...
RCL_LOGGING_INTERFACE_PUBLIC void	rcl_logging_external_log (int severity, const char *name, const char *msg)
	Log a message. More...
RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t	rcl_logging_external_set_logger_level (const char *name, int level)
	Set the severity level for a logger. More...
RCL_LOGGING_INTERFACE_PUBLIC rcl_logging_ret_t	rcl_logging_get_logging_directory (rcutils_allocator_t allocator, char **directory)
	Get the logging directory. More...

Enumeration Type Documentation

rcl_logging_ret_t

enum rcl_logging_ret_t

Enumerator
RCL_LOGGING_RET_OK
RCL_LOGGING_RET_ERROR
RCL_LOGGING_RET_INVALID_ARGUMENT
RCL_LOGGING_RET_CONFIG_FILE_DOESNT_EXIST
RCL_LOGGING_RET_CONFIG_FILE_INVALID

Function Documentation

rcl_logging_external_initialize()

RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t rcl_logging_external_initialize	(	const char *	config_file,
		rcutils_allocator_t	allocator
	)

Initialize the external logging library.

Parameters

[in]	config_file	The location of a config file that the external logging library should use to configure itself. If provided, it must be a null terminated C string. If set to NULL or the empty string, the logging library will use defaults.
[in]	allocator	The allocator to use for memory allocation. This is an rcutils_allocator_t rather than an rcl_allocator_t to ensure that the rcl_logging_* packages don't have a circular dependency back to rcl.

Returns

RCL_LOGGING_RET_OK if initialized successfully.

RCL_LOGGING_RET_ERROR if an unspecified error occurs.

RCL_LOGGING_RET_CONFIG_FILE_DOESNT_EXIST if a config_file is provided but the file doesn't exist.

RCL_LOGGING_RET_CONFIG_FILE_INVALID if a config_file is provided but the logging backend doesn't understand it.

rcl_logging_external_shutdown()

RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t rcl_logging_external_shutdown

(

)

Free the resources allocated for the external logging system.

This puts the system into a state equivalent to being uninitialized.

Returns

RCL_LOGGING_RET_OK if successfully shutdown, or

RCL_LOGGING_RET_ERROR if an unspecified error occurs.

rcl_logging_external_log()

RCL_LOGGING_INTERFACE_PUBLIC void rcl_logging_external_log	(	int	severity,
		const char *	name,
		const char *	msg
	)

Log a message.

Parameters

[in]	severity	The severity level of the message being logged.
[in]	name	The name of the logger, must either be a null terminated C string or NULL. If NULL or empty the root logger will be used.
[in]	msg	The message to be logged. Must be a null terminated C string.

rcl_logging_external_set_logger_level()

RCL_LOGGING_INTERFACE_PUBLIC RCUTILS_WARN_UNUSED rcl_logging_ret_t rcl_logging_external_set_logger_level	(	const char *	name,
		int	level
	)

Set the severity level for a logger.

This function sets the severity level for the specified logger. If the name provided is an empty string or NULL it will change the level of the root logger.

Parameters

[in]	name	The name of the logger. Must be a null terminated C string or NULL.
[in]	level	The severity level to be used for the specified logger.

Returns

RCL_LOGGING_RET_OK if set successfully, or

RCL_LOGGING_RET_ERROR if an unspecified error occurs.

rcl_logging_get_logging_directory()

RCL_LOGGING_INTERFACE_PUBLIC rcl_logging_ret_t rcl_logging_get_logging_directory	(	rcutils_allocator_t	allocator,
		char **	directory
	)

Get the logging directory.

Uses various environment variables to construct a logging directory path.

Use $ROS_LOG_DIR if ROS_LOG_DIR is set and not empty. Otherwise, use $ROS_HOME/log, using ~/.ros for ROS_HOME if not set or if empty.

It also expands an initial '~' to the current user's home directory, and converts the path separator if necessary.

If successful, the directory C string should be deallocated using the given allocator when it is no longer needed.

Parameters

[in]	allocator	The allocator to use for memory allocation.
[out]	directory	The C string pointer at which to write the directory path. Only meaningful if the call is successful. Must not be nullptr and must point to nullptr.

Returns

RCL_LOGGING_RET_OK if successful, or

RCL_LOGGING_RET_INVALID_ARGUMENT if any arguments are invalid, or

RCL_LOGGING_RET_ERROR if an unspecified error occurs.
